Enhance Your Glass Cutting Efficiency with Laser Glass Cutting Machine To Accuracy±0.01mm

Product Description:

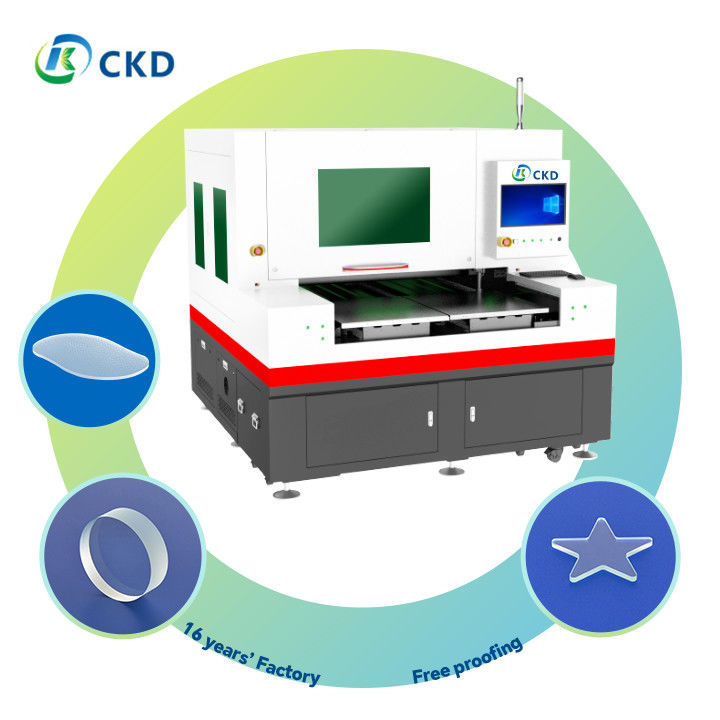

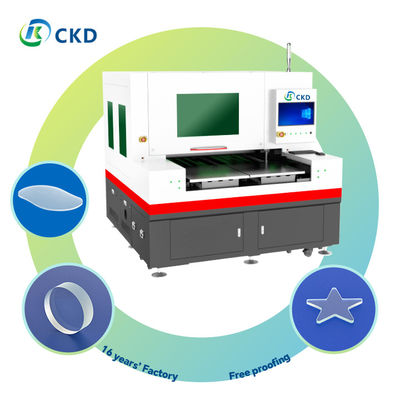

Introducing our cutting-edge Small Glass Laser Cutting Machine, designed to revolutionize the glass cutting industry. This state-of-the-art machine utilizes advanced technology to deliver precise and efficient cutting performance for a wide range of applications.

With a pulse width of less than 10ps, this laser cutting machine ensures fast and accurate cutting, making it ideal for intricate designs and detailed work. The chipping is kept to a minimum, measuring at less than 5μm, resulting in clean and smooth cuts on various types of glass.

The machine is equipped with a high-quality Splitting Laser Source, the RFC02 (Radio Frequency CO2), which provides a stable and reliable cutting experience. The RFC02 laser source operates at 10.6μm and comes in a standard 150W configuration, with options for upgrading to 250W or 350W for increased cutting power. The laser operates at a frequency range of 1-100kHz and features efficient water cooling to maintain optimal performance.

Ensuring superior cutting precision, the beam quality of this machine is rated at M² < 1.2, guaranteeing consistent and accurate results with every cut. Whether you are working with colored glass or traditional clear glass, this Fiber Laser Cutting Machine offers versatility and flexibility to meet your cutting needs.

With a working frequency of 50HZ/60HZ, this laser cutting machine can handle a wide range of cutting tasks with ease. Whether you are cutting intricate patterns, straight lines, or curves, this machine delivers exceptional cutting performance every time.

Experience the future of glass cutting with our Small Glass Laser Cutting Machine. From intricate designs to large-scale projects, this machine offers unmatched precision, efficiency, and reliability for all your glass cutting needs.

Features:

• Product Name: Fiber Laser Cutting Machine
• Applicable Materials:
  • Ultra Clear Class
  • Plain White Glass
  • High Borosilicate Glass
  • Quartz Glass
  • Optical Glass
  • Cover Glass
  • Camera Glass Cover
  • Phone Glass Cover
  • Car Glass
  • LCD Screen
  • K9 Glass
  • Filter Cutting
  • Mirror Cutting
• Linear guide brand: TPI
• Warranty and Service: Comes With A 2-year Warranty Covering Major Components Like The Laser Source And Control System. 24/7 Technical Support With Remote And On-site Service Options.
• Laser Power: 30/50/60/75/80/90w
• Repeatability: ±1.5μm

Applications:

The CKD Glass Cutting And Splitting Machine (All-in-One) is a versatile and high-precision laser cutting machine suitable for a variety of product application occasions and scenarios.

Designed and manufactured by CKD in China, this Single Table Glass Cutting Machine is ideal for industries requiring precise cutting of glass materials. The machine comes in various models such as CKD-DP6070C-50E, CKD-DP6070S-80TE, CKD-DP6070D-60E, and more, offering different laser source powers and cutting speeds to meet specific requirements.

Whether you need to cut plain glass, colored glass, or other types of glass materials, this laser cutting machine delivers cutting accuracy of ±0.01mm, ensuring clean and precise cuts every time. The CNC capabilities of the machine allow for efficient and automated cutting processes, making it suitable for a wide range of glass cutting applications.

With a splitting laser source power of 150W (options: 250W/350W), the CKD Glass Cutting And Splitting Machine offers flexibility in handling different glass thicknesses and materials. The cutting speed is adjustable from 0-500mm/s, providing customization options based on the specific cutting requirements.

Whether you are in the automotive, construction, or furniture industry, this High Precision Laser Cutting Machine is a valuable addition to your manufacturing processes. The machine is ISO and CE certified, ensuring quality and compliance with international standards.

For your convenience, the CKD Glass Cutting And Splitting Machine requires a minimum order quantity of 1, with pricing to be negotiated based on your specific needs. The machine is packaged securely in wooden vacuum packaging for safe transportation, with a delivery time of 25-45 days.

Payment terms for the machine include L/C and T/T, and CKD offers a supply ability of 60 sets per month, ensuring timely delivery for your production needs. Upgrade your glass cutting capabilities with the CKD Glass Cutting And Splitting Machine, a reliable and efficient solution for all your glass cutting requirements.

Customization:

Product Customization Services for the Laser Glass Cutting Machine:

Brand Name: CKD

Model Number: CKD-DP6070C-50E, CKD-DP6070C-60E, CKD-DP6070C-80TE, CKD-DP6070C-50ECKD-DP6070S-50E, CKD-DP6070S-60E, CKD-DP6070S-80TE, CKD-DP6070S-80ECKD-DP6070D-50E, CKD-DP6070D-60E, CKD-DP6070D-80TE, CKD-DP6070D-80ECKD-SP6070S-50E, CKD-SP6070S-60E, CKD-SP6070S-80TE, CKD-SP6070S-80ECKD-SP6070D-50E, CKD-SP6070D-60E, CKD-SP6070D-80TE, CKD-SP6070D-80ECKD-SP6070C-50E, CKD-SP6070C-60E, CKD-SP6070C-80TE, CKD-SP6070C-80E

Place of Origin: China

Certification: ISO CE

Minimum Order Quantity: 1

Price: Negotiated

Packaging Details: Wooden vacuum packaging

Delivery Time: 25-45 days

Payment Terms: L/C, T/T

Supply Ability: 60 sets per month

Chipping: ≤5μm

Working Frequency: 50HZ/60HZ

Drive Motor: XY Linear Motor + Grating Ruler

Repeatability: ±1.5μm

Key Selling Points: Ultra Fast Picosecond

Additional Features: Irregular glass cutting, Fiber Laser Cutting Machine

Support and Services:

The Laser Glass Cutting Machine product comes with comprehensive product technical support and services to assist customers in maximizing the machine's performance and capabilities. Our team of skilled technicians is available to provide guidance on machine setup, operation, and troubleshooting.

Additionally, we offer training programs to help users understand the machine's features and functionalities better. Our technical support team is dedicated to ensuring that customers receive prompt assistance and solutions to any issues they may encounter.

Furthermore, we provide maintenance services to keep the machine in optimal condition and extend its lifespan. Our goal is to deliver a seamless experience for customers, from initial setup to ongoing support, to ensure their satisfaction with the Laser Glass Cutting Machine product.

Packing and Shipping:

Product Packaging:

The Laser Glass Cutting Machine is carefully packaged in a sturdy cardboard box to ensure its safety during transportation. The machine is securely placed in the center of the box and surrounded by protective foam padding to prevent any damage. Additionally, the package includes an instruction manual and necessary accessories for setting up the machine.

Shipping:

Once your order is confirmed, the Laser Glass Cutting Machine will be shipped within 2 business days. We partner with reliable shipping carriers to deliver your product safely and on time. You will receive a tracking number to monitor the shipping status of your package. Please ensure someone is available to receive the delivery at the provided address.
